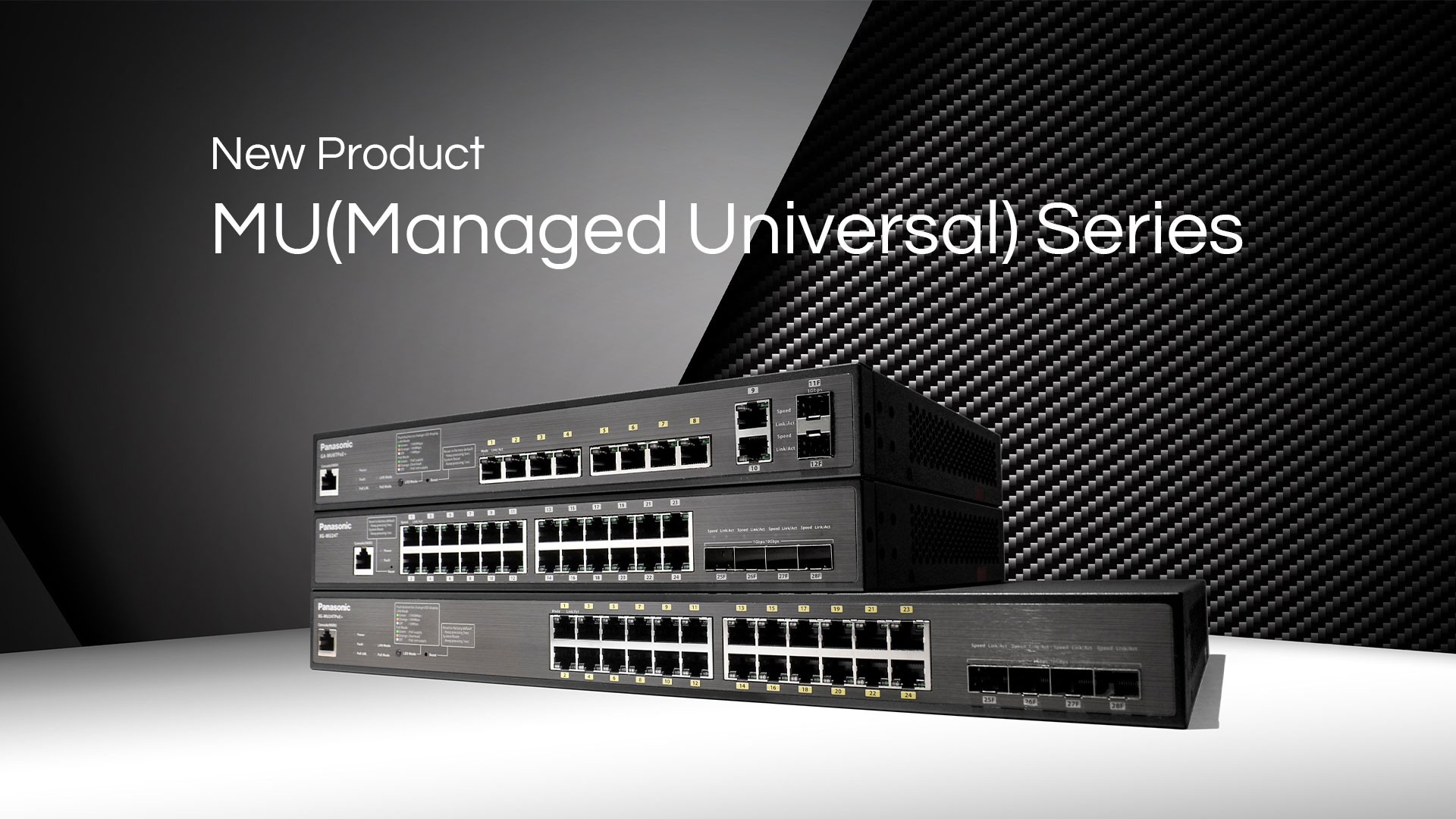

MU series (for India)
Specialized features for Network Camera and Wireless Access point.
Functions to cut work efforts and cost at Edge Networking.
Our switch solutions will contribute to the development of the "Indian Dream" infrastructure.
Summary
1.Heat resistance (up to 60℃)
Our PoE switches※ feature heat resistance (up to 60℃) ensuring stable operation under severe environmental condition.
※Only when activated in the software
Inland region, temperature can rise above 45℃

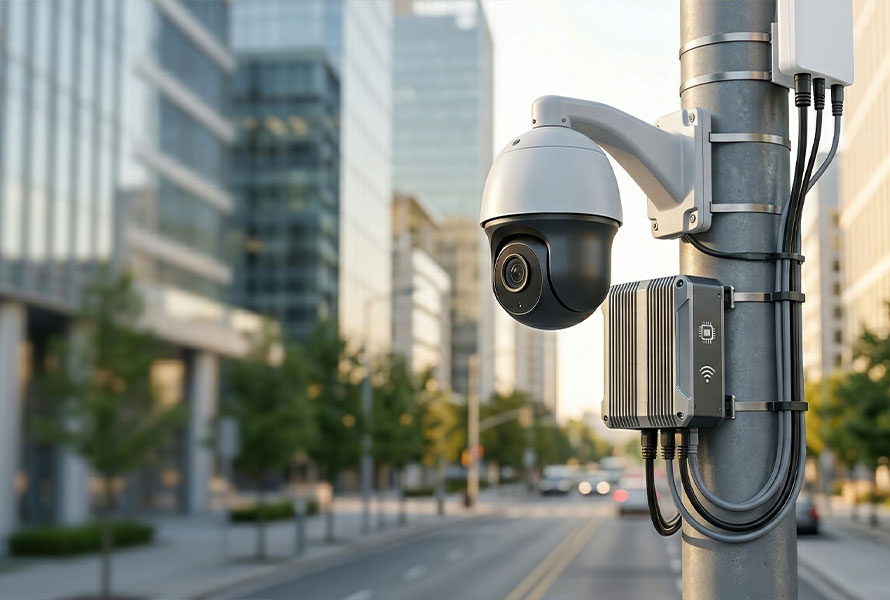

Temp. rise even higher in outdoor cabinet or enclosure

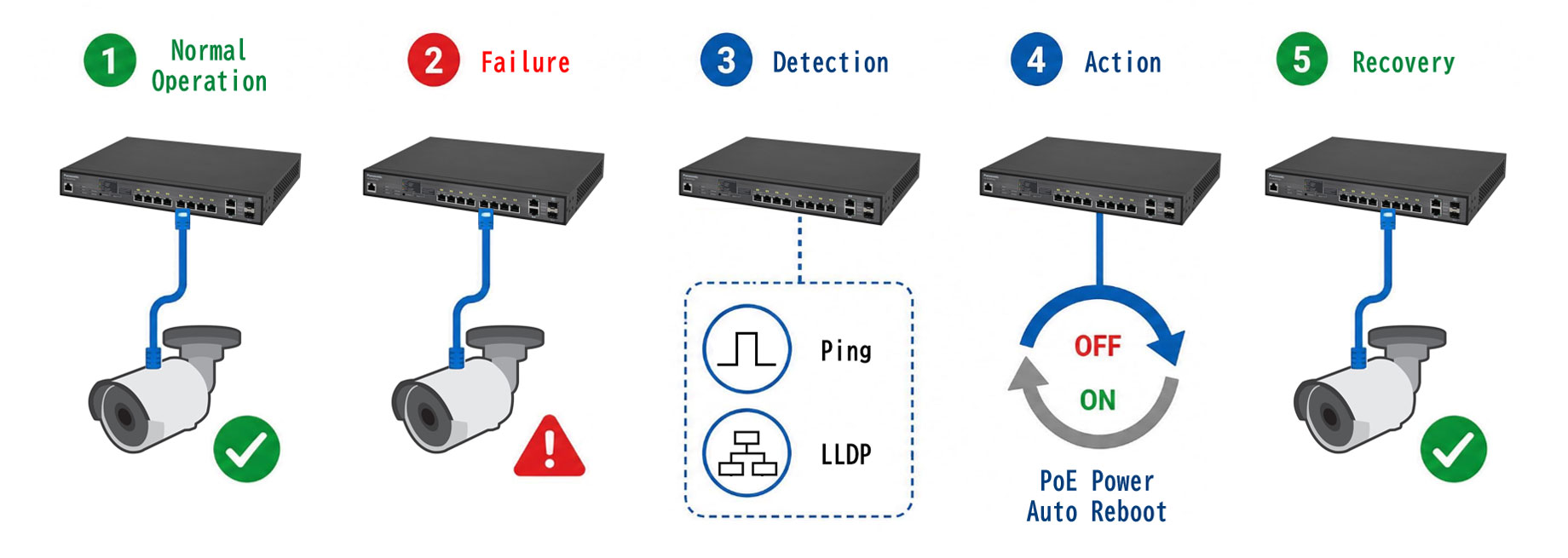

2.Auto Reboot Function
Automatic detection and recovery for PoE devices.
When a device such as an IP camera stops responding, the switch detects the issue via Ping and LLDP, and automatically reboots the PoE port.
No onsite operation is required, enabling fast recovery and continuous system availability.
What is Auto Reboot Functions

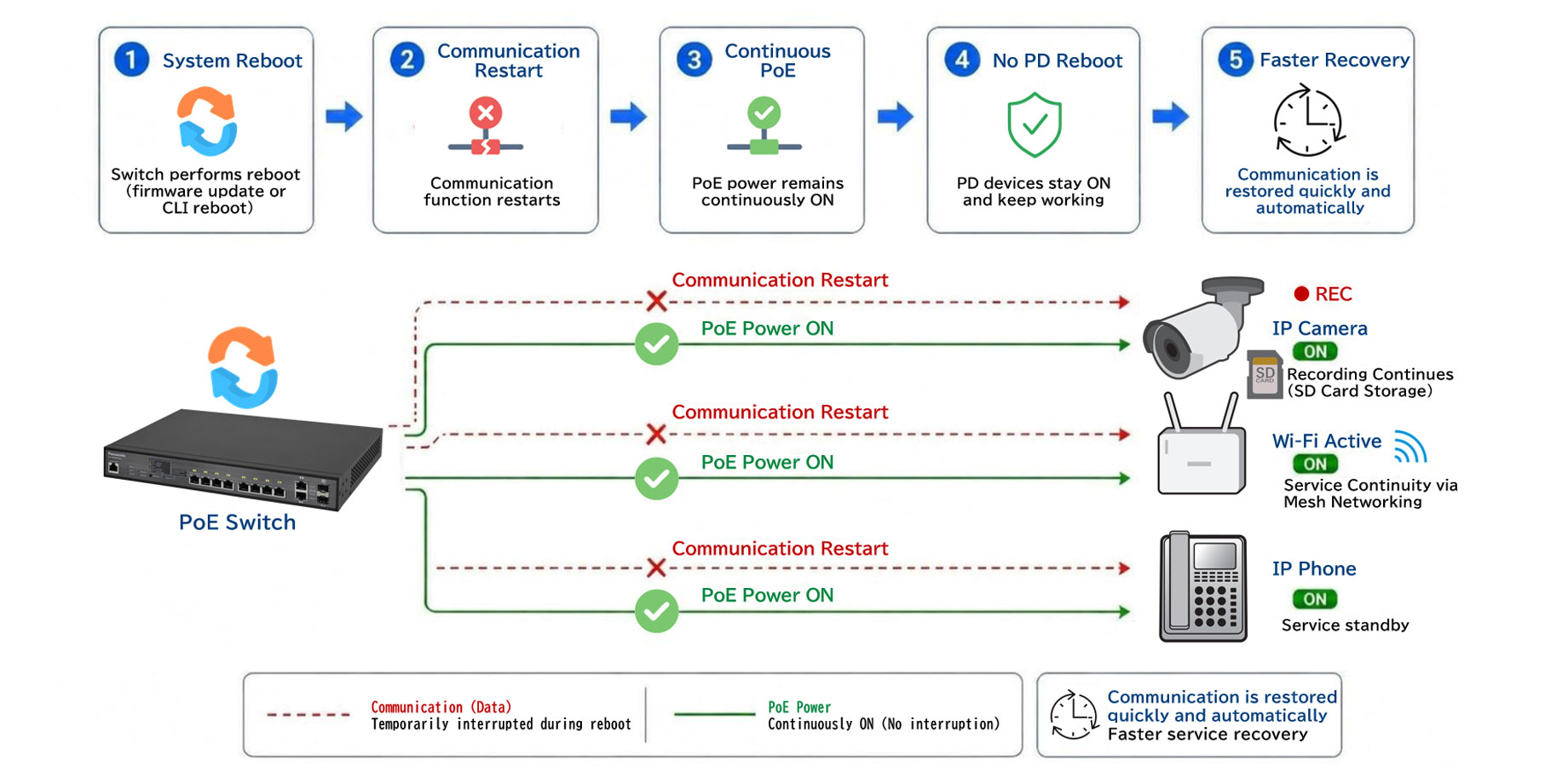

3.Continuous PoE (Reboot Flick Function)
During a system reboot, conventional switches interrupt both communication and PoE power, forcing connected devices to restart.With Reboot Flick (Continuous PoE), the switch restarts its communication function while maintaining continuous power delivery to connected devices.As a result, devices remain powered throughout the reboot.
IP cameras can continue recording via internal storage such as SD cards, and wireless access points can sustain connectivity when deployed with mesh functionality.This approach minimizes service disruption, shortens recovery time, and significantly reduces overall system downtime.
What is Reboot Flick Function

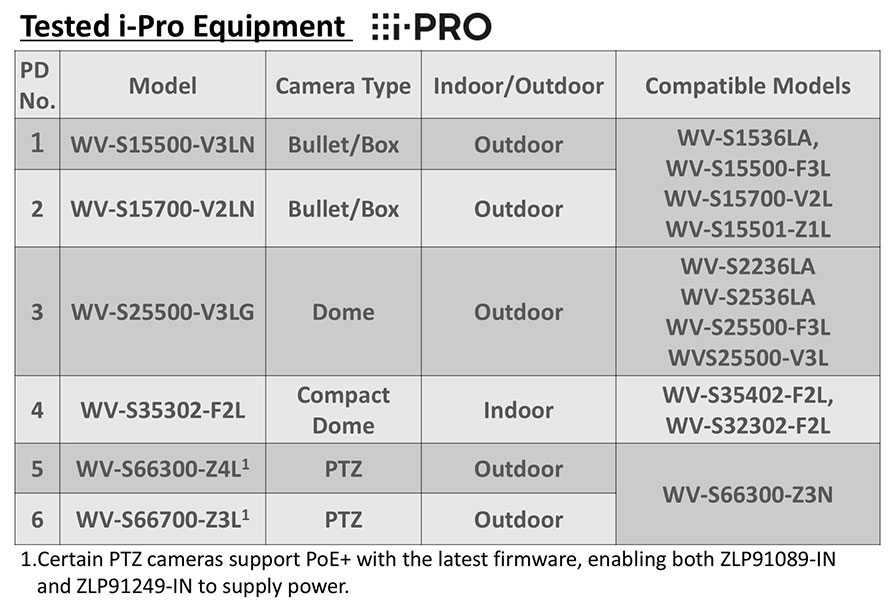

4.Camera connectivity
Our switches already completed connectivity testing for major device such as i-Pro.
Camera connection verification support is available.
Connection Verified List
5.IGMP Snooping
In multicast environments such as camera networks, using IGMP Snooping can suppress unnecessary video data from straining network bandwidth and create a stable network environment.
Product
| Product | External dimensions | Data download |
|---|---|---|

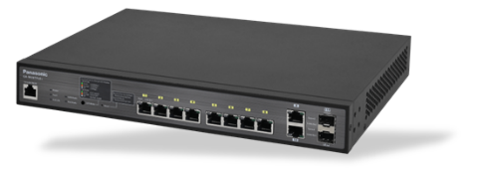

 GA-MU8TPoE+（ZLP91089-IN） |
H44× W330× D230mm |
Installation Guide Specification Drawing CLI Reference Web Reference OSS Firmware |

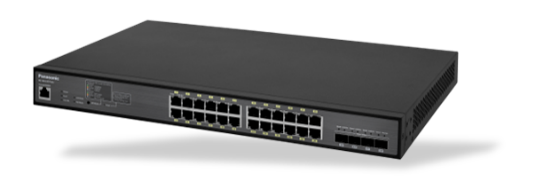

 XG-MU24TPoE+（ZLP91249-IN） |
H44× W440× D260mm |
Installation Guide Specification Drawing CLI Reference Web Reference OSS Firmware |

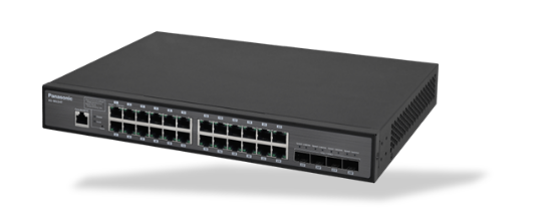

 XG-MU24T（ZLP91240-IN） |
H44× W330× D230mm |
Installation Guide Specification Drawing CLI Reference Web Reference OSS Firmware |
Option
| Product | External dimensions | Data download |
|---|---|---|
 1000BASE-SX SFP Module（i） (PN54022-IN) |
H9× W14× D57mm |
Installation Guide Specification Drawing |
 1000BASE-LX SFP Module （i） (PN54024-IN) |
H9× W14× D57mm |
Installation Guide Specification Drawing |

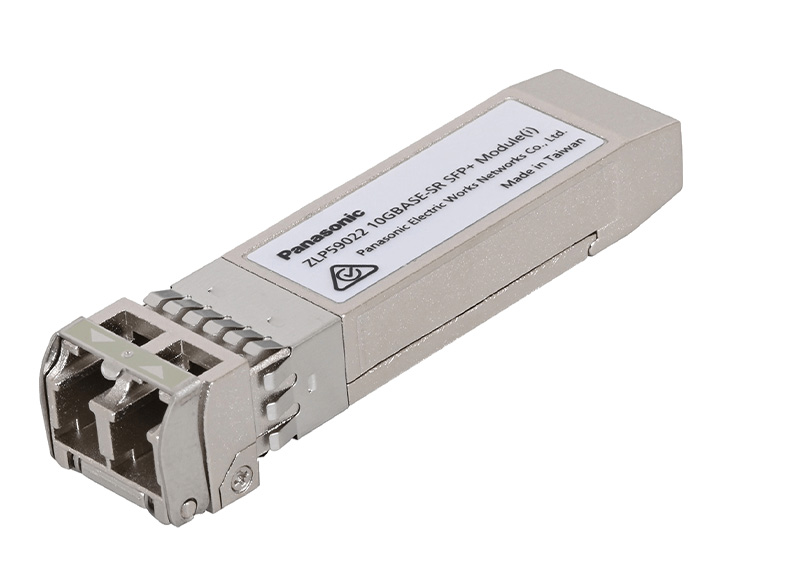

 10GBASE-SR SFP+ Module (i) (ZLP59022-IN) |
H11.9× W13.8× D56.5mm |
Installation Guide Specification Drawing |

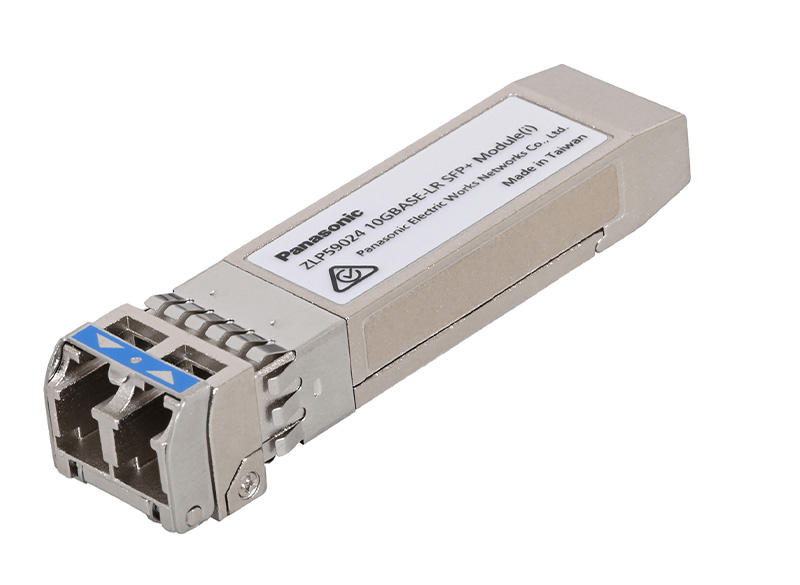

 10GBASE-LR SFP+ Module (i) (ZLP59024-IN) |
H11.9× W13.8× D56.5mm |
Installation Guide Specification Drawing |
Features
Interface
| GA-MU8TPoE+ (ZLP91089-IN) | XG-MU24TPoE+ (ZLP91249-IN) | XG-MU24T (ZLP91240-IN) | ||
|---|---|---|---|---|
| 10/100/1000BASE-T | 8 | 8 | 24 | |
| PoE ports | 8 | 24 | - | |
| SFP/SFP+ slots | 2 (SFP only) | 4 | 4 | |
| Console | RJ45 (console) | RJ45 (console) | RJ45 (console) | |
| Auto MDI/MDI-X | Supported | Supported | Supported | |
Switching Specifications
| GA-MU8TPoE+ (ZLP91089-IN) | XG-MU24TPoE+ (ZLP91249-IN) | XG-MU24T (ZLP91240-IN) | ||
|---|---|---|---|---|
| Switching Specifications | ||||
| Switching Capacity | 24.0Gbps | 128.0Gbps | 128.0Gbps | |
| Packet Forwarding Rate | 14.9 Mpps | 35.7 Mpps | 35.7 Mpps | |
| MAC Address Table | Max. 8K entries/unit | Max. 16K entries/unit | Max. 16K entries/unit | |
| Buffer Memory | 512KB | 1.5MB | 1.5MB | |
Management
| GA-MU8TPoE+ (ZLP91089-IN) | XG-MU24TPoE+ (ZLP91249-IN) | XG-MU24T (ZLP91240-IN) | ||
|---|---|---|---|---|
| Management | Console, TELNET, SSH, Web GUI | Console, TELNET, SSH, Web GUI | Console, TELNET, SSH, Web GUI | |
| Configuration Method | CLI, WEB | CLI, WEB | CLI, WEB | |
| Log | System log, SNMP, Logging synchronous | System log, SNMP, Logging synchronous | System log, SNMP, Logging synchronous | |
PoE Features
| GA-MU8TPoE+ (ZLP91089-IN) | XG-MU24TPoE+ (ZLP91249-IN) | XG-MU24T (ZLP91240-IN) | ||
|---|---|---|---|---|
| PoE Standard | IEEE802.3at, IEEE802.3af | IEEE802.3at, IEEE802.3af | Not supported | |
| Power Feeding Mode | Alternative A | Alternative A | - | |
| Maximum Power per Port | 30W | 30W | - | |
| Total PoE Power Budget | 130W | 410W | - | |
| PoE auto reboot | Supported | Supported | - | |
| Reboot Flick Function（Continuous PoE） | Supported | Supported | - | |
Layer 3 Features
| GA-MU8TPoE+ (ZLP91089-IN) | XG-MU24TPoE+ (ZLP91249-IN) | XG-MU24T (ZLP91240-IN) | ||
|---|---|---|---|---|
| IPv4 Routing | Static Routing | Static Routing | Static Routing | |
| IPv6 Routing | Static Routing | Static Routing | Static Routing | |
| Routing Table | Supported (Static routing only) | Supported (Static routing only) | Supported (Static routing only) | |
| Multicast Routing | Not supported | Not supported | Not supported | |
Layer 2 Switching Functions
| GA-MU8TPoE+ (ZLP91089-IN) | XG-MU24TPoE+ (ZLP91249-IN) | XG-MU24T (ZLP91240-IN) | ||
|---|---|---|---|---|
| VLAN | VLAN | IEEE 802.1Q Tag VLAN, Voice VLAN | IEEE 802.1Q Tag VLAN, Voice VLAN | IEEE 802.1Q Tag VLAN, Voice VLAN |
| Number of VLAN | 4094 | 4094 | 4094 | |
| Spanning Tree | IEEE 802.1W RSTP, IEEE 802.1Q MSTP, BPDU guard | IEEE 802.1W RSTP, IEEE 802.1Q MSTP, BPDU guard | IEEE 802.1W RSTP, IEEE 802.1Q MSTP, BPDU guard | |
| Link Aggregation | IEEE 802.ad (STATIC), up to 8 groups (up to 8 ports/group) | IEEE 802.ad (STATIC), up to 8 groups (up to 8 ports/group) | IEEE 802.ad (STATIC), up to 8 groups (up to 8 ports/group) | |
| Multicast | IGMP Snooping（v2）, IGMP Querier | IGMP Snooping（v2）, IGMP Querier | IGMP Snooping（v2）, IGMP Querier | |
| QoS | QoS | IEEE 802.1p (8 priority queues) | IEEE 802.1p (8 priority queues) | IEEE 802.1p (8 priority queues) |
| Scheduling | Strict Priority Queuing (SPQ), Weighted Round Robin (WRR) | Strict Priority Queuing (SPQ), Weighted Round Robin (WRR) | Strict Priority Queuing (SPQ), Weighted Round Robin (WRR) | |
| Authentication | IEEE 802.1X (Port-based) | IEEE 802.1X (Port-based) | IEEE 802.1X (Port-based) | |
| DHCP | Client, Relay | Client, Relay | Client, Relay | |
| DHCP snooping | Supported | Supported | Supported | |
| Port Mirroring | SPAN | SPAN | SPAN | |
| LLDP | v1 / v2 (IEEE 802.1AB) | v1 / v2 (IEEE 802.1AB) | v1 / v2 (IEEE 802.1AB) | |
| ACL | MAC/IPv4/IPv6 based ACL, Port-based ACL binding | MAC/IPv4/IPv6 based ACL, Port-based ACL binding | MAC/IPv4/IPv6 based ACL, Port-based ACL binding | |
Ratings & Physical Specifications
| GA-MU8TPoE+ (ZLP91089-IN) | XG-MU24TPoE+ (ZLP91249-IN) | XG-MU24T (ZLP91240-IN) | ||
|---|---|---|---|---|
| Rated Input Voltage | AC100-240V 50/60Hz | AC100-240V 50/60Hz | AC100-240V 50/60Hz | |
| Power Consumption (Min. / Max.) | 8.8 W / 159 W | 16 W / 514 W | 8.5 W / 25.1 W | |
| Operating Temperature | 0 to 50 °C (60 °C max. with Temperature Tolerance Mode) | 0 to 50 °C (60 °C max. with Temperature Tolerance Mode) | 0～50℃ | |
| Operating Humidity | 20 - 80%RH （no condensation） | 20 - 80%RH （no condensation） | 20 - 80%RH （no condensation） | |
| Dimensions | H44×W330×D230mm | H44×W440×D257mm | H44×W330×D230mm | |
| Weight | 2,100g | 3,800g | 2,200g | |
Reliability and Support
| GA-MU8TPoE+ (ZLP91089-IN) | XG-MU24TPoE+ (ZLP91249-IN) | XG-MU24T (ZLP91240-IN) | ||
|---|---|---|---|---|
| Warranty | 5-year Advance Exchange Return-to-Base Service | 5-year Advance Exchange Return-to-Base Service | 5-year Advance Exchange Return-to-Base Service | |
For customers in the Indian market, please note that the Panasonic LAN Switch MU series products are officially distributed and sold by Panasonic Life Solutions India Pvt.Ltd.
